- Air conditioning automati ccontrol: JCZK type air handling unit control system with the international advanced air conditioner dedicated high reliable intelligent industrial grade micro computer as the core, control various unit equipment, multi point input one output of computer equipment, hardware and software are modular design, configuration flexibility, good performance, software advanced.
- Description
Air conditioning automati ccontrol: JCZK type air handling unit control system with the international advanced air conditioner dedicated high reliable intelligent industrial grade micro computer as the core, control various unit equipment, multi point input one output of computer equipment, hardware and software are modular design, configuration flexibility, good performance, software advanced, can make the equipment running always maintain good state, and achieve energy saving and control accuracy requirements, the direct digital controller can not only run independently, but also through the network controller and central management unit into a distributed test system.

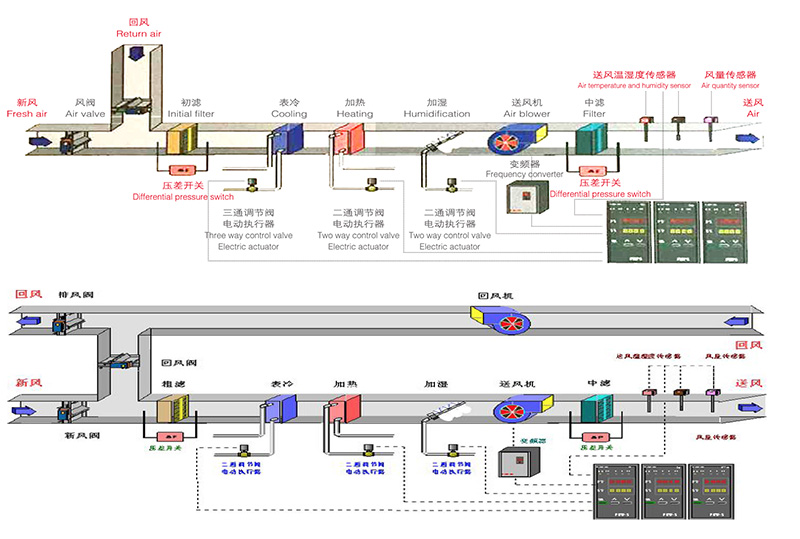

Air conditioning automatic control engineering principle: air handling unit control system, by the temperature, humidity of the two parts, the wind pipe sensor to monitor the air temperature and humidity, feedback to the instrument according to the results of PI calculation, the electric control valve to control, adjust the cold, hot water and steam humidification quantity, so that the air temperature and humidity in the required range.
The segment structure
1, mixed section
Mixing section at the top and sides of the blocking plate is arranged on the air, usually at the top of the outlet for return with, side wall plate outlet for fresh air inlet. Plugin the new air outlet can also be based on the project design or cancellation, or to meet the use of new wind conditions.
2, early, medium efficiency filter section
There is no woven cloth bag type filter, easy to assemble and disassemble, and the sealing between the frame is good. The primary effect filter media is WY-CP-9 type nonwoven fabric. Medium efficiency filter material for WZ-CP-2 type of non-wovenfabric. The filter section is necessary for the purification of air conditioning system and should be installed in the fan section (S). Rent, medium efficiency filter section is set up to test the instrument, the pressure difference on the spotshow.
3, Mufflersection
A modular block combination muffler section, noise reduction for 15-20dB(A).
4, fresh air, return air, exhaust air conditioning stage
This section is arranged on the top of fresh air, exhaust valve, avalve, areturn. Double fan system and there is a row of wind, the section is set at the back of the exit of the machine, it can record three parts of the air flow.
5, two times the return period
The two section is arranged on the top of two return air control valve.
6, middle section
As a part of the connection between the body and the internal inspection and repair, the open door, from the end of the 250mm.
7, send, return fan section
Send fan section and return period are equipped with high efficiency and energy saving double in wind centrifugal fan, and is equipped with a spring damping pedestal, good vibration isolation performance, smooth operation and low noise.
Introduction of JCZK modular air conditioning unit
The air blower section is divided into three types: S, vertical (H) and lower (D). The top of the fan section can be opened for two times, so as to shorten the length of the air conditioner. Return fan top can open a new return air inlet, outlet, depending on the need of engineering design and selection. The company air conditioner is equipped with a wind model, the outlet of the wind turbine in the case, the export control valve should be configured in the case, there are engineering design matching, the company can be in accordance with the engineering design and order; the bottom of the chassis outlet size and air blower outlet size. Return fan motor and blower with external, blower shaft extension with reliable sealing elastic sleeve. The external motor is provided with an isolating vibration pad,and the wind turbine is arranged in the chassis.
8, the average flow section
This section is arranged in the water spray and air supply machine segment (s), Ueutenant Colonel filter before, reduce fan outlet dynamic pressure and air flow distribution to ensure the role of bag filter. Place in front of the water section to replace the previous wind plate.
9, heating section
The heater has copper tube (d/4) sets of aluminum and steel tube around two kinds of steel. The heater has a row, two rows and three rows, which can be selected. Hot water and steam can be used as heat medium for steam heating medium for single loop structure.
10, table cooling water plate section
Table cooler face velocity vy is more than or equal to 2.5m/s. This section by the surface cooler and retaining water board composition, table cooler for copper set double flanged aluminum fins or copper fin sheet structure, sophisticated manufacturing, the cooling rate is high. The number of rows in the table are four, six, eight, ten, four, the performance of the sheet is from the 3.0mm specification, the water board is made of glass and plastic. Such as when the cold head of the Vy 2.5m/s, can not stop the water plate. The bottom of this section is provided with a drip groove, and the side of the drip groove is provided with a drain pipe.
11, pouring water meter cold section
Consist of a surface cooler and a single row of water. Improve the heat transfer coefficient of the cooling heat exchanger, clean the air.
12, spray section
Spray section of the two row, three row and three row four. Period with current board and a water retaining plate, nozzle for FL type, orifice diameter of 4.0mm, the water pressure 0.15Mpa, each water volume 250kg/h, efficient energy-saving.
13, dry steam humidifier
The body configuration of a dry steam humidifier, manual (MSH) gas dynamic (QSHtype) and electric (ESH type) three choices for engineering design.
14, send the wind section
The air supply outlet is located at the top (vertical out of the wind), the side of the board (horizontal wind) and the bottom floor of the three, for the project. Dry steam humidifier can also be located in this section, in order to shorten the length of combined air conditioner. This section only after the blower section still has other functions section M. placed generally may not be placed.
15, turning section
This section has two types of horizontal and verticalturning. When the room is not enough length, can choose the level of the corner, the section is equipped with a guide plate, conveying air uniform. When the engine room is high, the space can be used, can choose vertical bend section, installed in the air blower section (H) above, then pick up theselected functional section, such as: the muffler section, the wet section, the two heating section, the middle section, the middle section, the air supply section,etc..
16, motor, lighting and meter test hole
36V40W waterproof lamp, a are arranged on the air conditioner in the mixing section, middle section, dry steam humidifier section, secondary return air section, flow section, a blower section. Air conditioning power control cabinet, provide all power equipment for air conditioning, power supply operation, interlocking guarantee and display alarm system, and provide 36V safe voltage lighting system. The user is responsible for the 380V power line connected to the control cabinet and connected to the power plant.
